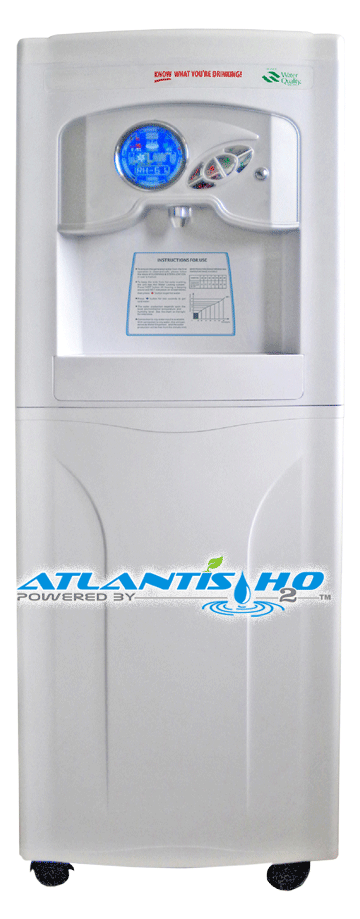

Atmospheric Water Generator Model:   Model Number:ASWRHB-88HR(B) Model Number: ASWRHB-88HR(B) "28L Hot and Cold Water Inverter AWG!" New!  Requires virtually no cleaning... "Lowest price, best quality, why pay more?" Atmospheric Water Generator - Newest model 28L/24H Inverter compressor *Specification: Model Number:ASWRHB-88HR(B) Total Wattage:800-950W Heating Wattage:500W Cooling Wattage:380W Cold Water Temperature:4-10℃ Temperature of Hot Water:75-93℃ Refrigerant Type: R134a/330g (environmentally friendly) Production Capacity: (30℃, humidity 80%): 28L/24H Storage Capacity: 12.5L SS (stainless steel) bottom tank: 2.82L (Maximum) and 1.8L (Effective) Purified water tank:6.82L Cold tank:2.76L Temperature Range:15’C-40’C Humidity Range: 35%-95% Noise Level: <60DB Net Weight: 50Kgs Gross weight:53Kgs Machine size:40*41.5*112.4cm Carton Packing Size (CM):46*43*116.5cm Plywood Packing Size (cm):48*46*117.8cm Sample charge: Extra $200 ($200 will be refunded once next order is successful) Warranty: One year for the whole machine and two year for the compressor Delivery time:30-35 days Sample delivery time:7-10 days upon receipt your 100% payment For container order,1% spare parts free of charge will be included Certificate: CE Approval for unit and water test approval ASWRHB-88HR(B) (B) means it is inverter compressor Inverter Compressor Advantages: 1. Energy saving of 25~30% in water cooling. 2. Less noise during low ambient temperature and low relative humidity weather condition. 3. Can reduce noise level by adjusting the frequency, but will sacrifice one liter of water production per 5 db, maximum reduction of 10 db. 4.Lower dew point of 14 degree ºC (machine can still generate water during lower ambient temperature so as to improve overall capacity, regular compressor has a dew point of 19 ºC degrees, the machine will start defrosting. 5.Longer compressor life span. Inverter Compressor Disadvantages: 1.Higher manufacturing cost because a special high-tech inverter circuit board and named brand compressor (Mitsubishi) 2.Noisier at high relative humidity and ambient temperature level The Atmospheric Water Generator is a humidity and temperature driven machine. This means the machine totally depends on the level of humidity in the air and the temperature to produce water. Ideally , the humidity level should be at least 50% or above to achieve the machine’s optimum performance. In places with lower humidity level, the machine will still produce water, but not as quickly, nor as much as in places with high level of humidity. Higher level of humidity most commonly near an open window or lower level basement.
