ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

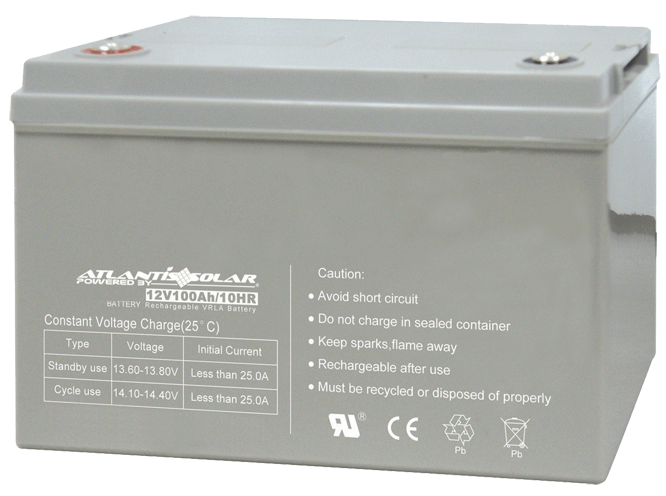

12V100Ah Maintenance Free Sealed Lead Acid Battery
12V100Ah (UL, CE Certifications, 2 years Warranty)

Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |


Specifications

Nominal Voltage

12V

Rated Capacity

100Ah

Dimensions

Total Height

8.94 inches (227mm)

Height

8.66 inches (220mm)

Length

13.00 inches (330mm)

Width

6.73 inches (171mm)

Approximate Weight

66.1lbs. (30.0kg)











* Characteristic







Capacity
77oF (25 oC)

20h rate (5.00A)

100Ah

10h rate (9.60A)

96.0Ah

5h rate (16.5A)

82.5Ah

1h rate (61.8A)

61.8Ah

15 min rate (175A)

43.75Ah

Internal Resistance

Full charged Battery

4.5m??

77oF (25 oC)

Capacity affected by temperature (20h rate)

104oF (40oC)

102%

77oF (25oC)

100%

32oF (0oC)

85%

5oF (-15oC)

65%

Self-Discharge 68oF (20oC) (Capacity after)

3 month storage

90%

6 month storage

80%

12 month storage

60%

Max. Discharge Current

800A (5s)

77oF (25oC)

Terminal

T6, T13

Charge
 (Constant Voltage, 25oC)

Cycle

14.4-14.7V(-24mV/oC)

max. current:30A

Float

13.6-13.8V(-18mV/oC)


Remarks:
Please charge the battery for 18 hours at current 15A with voltage limitation 14.4V every three months during stock
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced

  General Features
  • Sealed and maintenance free operation
  • Safety valve installation for explosion proof
  • Low self-discharge characteristic
  • Long service life, the designed service life is 10 years
  • Wide operating temperature range from 15º-40º
  • Lead Aluminum calcium Tin alloy high energy, prevent corrosion
