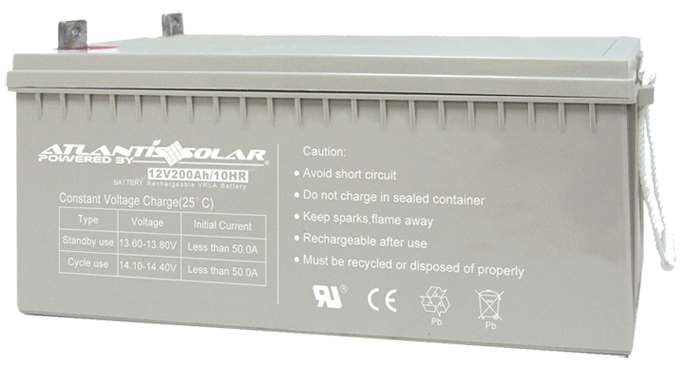

| 12V200Ah Maintenance Free Sealed Lead Acid Battery |
| 12V200Ah (UL, CE Certifications, 2 years Warranty) |
| |
| |
| |
 |
| Specifications | | | | | Nominal Voltage | 12V | | Rated Capacity | 200Ah | | Dimensions | Total Height | 9.29 inches (236mm) | | Height | 8.58 inches (218mm) | | Length | 20.55 inches (522mm) | | Width | 9.37 inches (238mm) | | Approximate Weight | 136.7lbs. (62.0kg) | | | | | | | | * Characteristic | | | | | Capacity
77oF (25 oC) | 20h rate (10.0A) | 200Ah | | 10h rate (19.0A) | 190Ah | | 5h rate (32.1A) | 160.5Ah | | 1h rate (124A) | 124Ah | | 15 min rate (340A) | 85Ah | | Internal Resistance | Full charged Battery | 3.5m?? | | 77oF (25 oC) | | Capacity affected by temperature (20h rate) | 104OF (40oC) | 102% | | 77 oF (25oC) | 100% | | 32 oF (0oC) | 85% | | 5 oF (-15oC) | 65% | | Self-Discharge 68oF (20oC) (Capacity after) | 3 month storage | 90% | | 6 month storage | 80% | | 12 month storage | 60% | | Max. Discharge Current | 1000A (5s) | | 77oF (25oC) | | Terminal | T9, T13 | | Charge

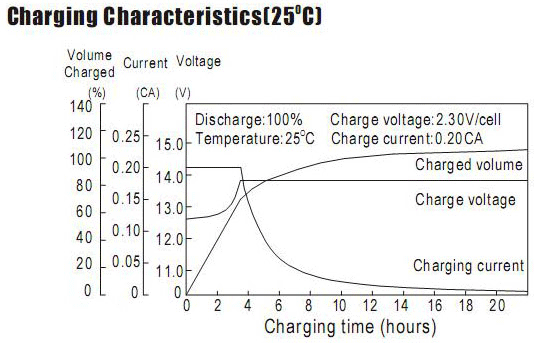

(Constant Voltage, 25oC) | Cycle | 14.4-14.7V(-24mV/oC) | | max. current:60.0A | | Float | 13.6-13.8V(-18mV/oC) | |
| |
Remarks:
Please charge the battery for 18 hours at current 20A with voltage limitation 14.4V every three months during stock
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced |
| |
General Features - Sealed and maintenance free operation
- Safety valve installation for explosion proof
- Low self-discharge characteristic
- Long service life, the designed service life is 10 years
- Wide operating temperature range from 15º-40º
- Lead Aluminum calcium Tin alloy high energy, prevent corrosion
|
 |
 |
 |
| |
