ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

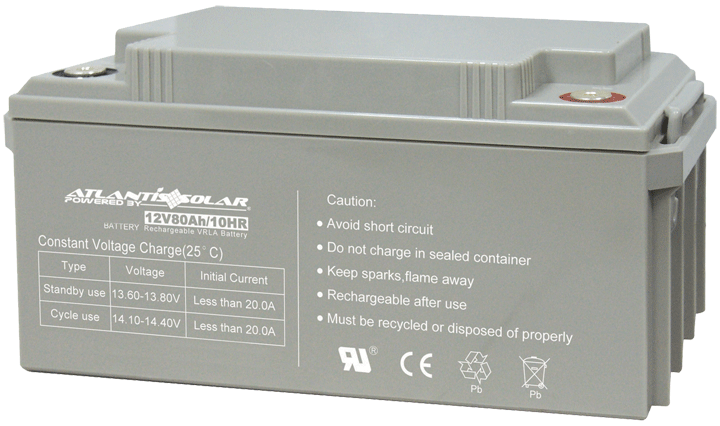

12V80h Maintenance Free Sealed Lead Acid Battery
12V80Ah (UL, CE Certifications, 2years Warranty)

Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |


*Specifications        Terminal Type: B5
Terminal Material: Copper
Nominal Voltage 12V
Rated Capacity 80AH
Dimensions Length 260MM
Width 167MM
Height 213MM
Total Height 216MM
Approximate Weight 23.50Kg
Capacity
77°F (25 °C)
10h rate (8.0A, 10.8V) 80Ah
5h rate (14.4A, 10.5V) 72Ah
1h rate (53.7A, 9.6V) 53.7Ah
Internal Resistance Full charged Battery 77°F (25°C) 5.4mΩ
Capacity affected by temperature (20h rate) 104°F (40°C) 102%
77°F (25°C) 100%
32°F (0°C) 85%
5°F (-15°C) 65%
Self-Discharge 68°F (20°C) (Capacity after) 3 month storage 91%
6 month storage 82%
12 month storage 65%
Max. Discharge Current 750A (5s)
Max.Charging Current  77°F (25°C) 24A
Terminal Type & Material  B5/ Copper

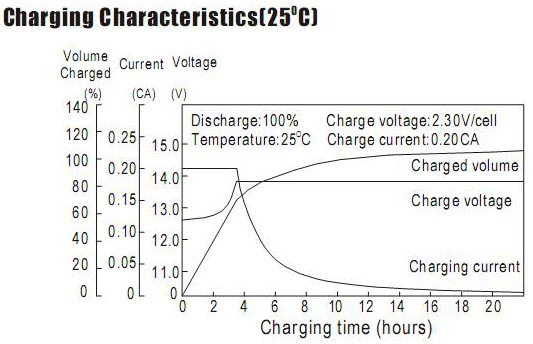

Charge
 (Constant Voltage, 25°C)
Cycle 14.4-14.7V(-24mV/°C)
max. charging current:24A
Float 13.6-13.8V(-18mV/°C)
Nominal Operating Temperature 25°C±3°C (77°F±5)
Operating Temperature Range -15°C~50°C(5°F~122°F)

Remarks:
Please charge the battery for 18 hours at current 8.0A with voltage limitation 14.4V every three months during stock
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced
