ASWB - AGM Deep Cycle Model: Applications Solar - Wind - UPS

2V1000Ah Maintenance Free Sealed Lead Acid Deep Cycle Battery
2V1000Ah (UL, CE Certifications, 2 years Warranty)

Menu     12V | 12V~24Ah | 12V~40Ah | 12V~65Ah | 12V~80Ah | 12V~100Ah | 12V~120Ah | 12V~150Ah | 12V~200Ah
    2V | 2V~500Ah | 2V~600Ah | 2V~800Ah | 2V~1000Ah | 2V~1500Ah | 2V~2000Ah | 2V~3000Ah |

*Specifications       Terminal Type: B6
Terminal Material: Copper
Nominal Voltage 2V
Rated Capacity 1000Ah

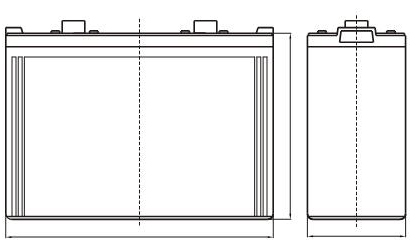

Dimensions ± 2mm Length 475mm
Width 175mm
Height 330mm
Total Height 365mm
Approximate Weight 65KG
Capacity
77°F (25 °C)
10h rate (100A,1.80V) 1000Ah
5h rate (180A,1.75V) 900Ah
1h rate (620A,1.60V) 620Ah
Internal Resistance  Full charged Battery 0.20mΩ
77oF (25 oC)
Capacity affected by temperature (20h rate) 104OF (40oC) 102%
77 oF (25oC) 100%
32 oF (0oC) 85%
5 oF (-15oC) 65%
Self-Discharge 68oF (20oC) (Capacity after) 3 month storage 91%
6 month storage 82%
12 month storage 65%
Max. Discharge Current  77°F (25°C) 4000A (5s)
Max.Charging Current  77°F (25°C) 200A
Terminal Type & Material  B6 Copper
Charge
(Constant Voltage, 25°C)
Cycle 2.35-2.40V (-5mV/°C)
max. current:200A
Float 2.25-2.30V  (-3.3mV/°C)
Nominal Operating Temperature 25°C±3°C (77°F±5)
Operating Temperature Range -15C~+45C (5°F~122°F)

Remarks:
Please charge the battery for 18 hours at current 100A with voltage limitation 2.4V every three months during stock.
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced

General Features
  • Sealed and maintenance free operation
  • Safety valve installation for explosion proof
  • Low self-discharge characteristic
  • Long service life, the designed service life is 10 years
  • Wide operating temperature range from 15º-40º
  • Lead Aluminum calcium Tin alloy high energy, prevent corrosion
