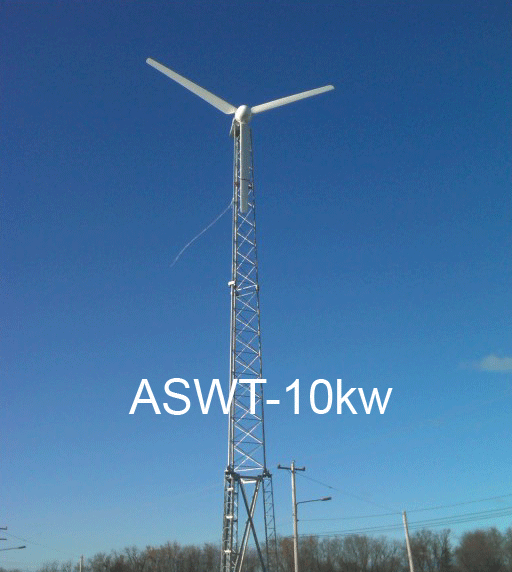

10kW Wind Turbine (ASWT-10kW)


Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW



Model

ASWT.8.0-10KW
Rated Power 10KW
Maximum Output Power (W) 15000
Battery Bank Voltage (Vdc) 240
System output voltage (Vdc) 110/220/380
Start-up wind speed (m/s) 3
Rated wind speed (m/s) 10
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.85
Wind energy utilizing ratio (cp) 0.4
Generator type Permanent Magnet Alternator
Generator weight (kg) 287
Blade material / quality GRP/3
Blade diameter (m) 8.0
Speed regulation method Yawning + Electromagnetism braking (Optional hydraulic braking)
Shutting down method Manual + Automatic

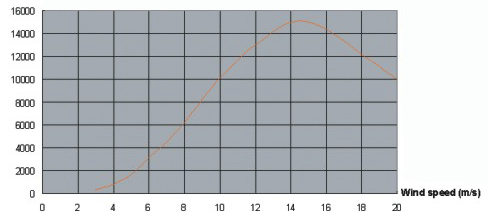

ASWT-10kw Curve Hydraulic Tower
