Atlantis Wind Turbines :
"High Quality at Unbeatable Prices and Built to Last"

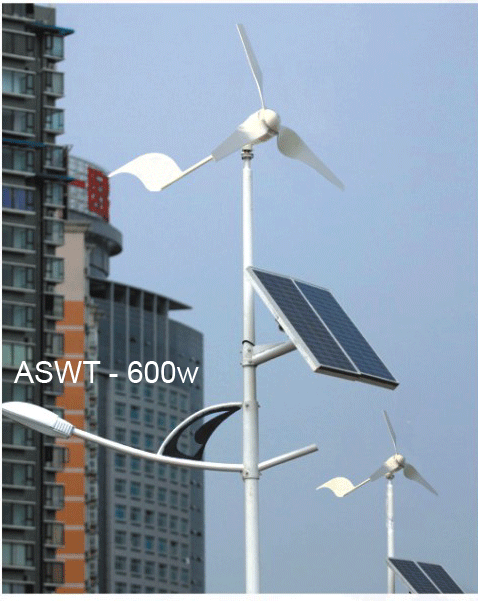

600W Wind Turbine (ASWT-600W)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW


Rated Power 600W
Maximum Output Power (W) 800
Battery Bank Voltage (Vdc) 24
System output voltage (Vdc) 24
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 11
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.8
Wind energy utilizing ratio (cp) 0.4
Generator type Permanent Magnet Alternator
Generator weight (kg) 7
Blade material / quality GRP/3
Blade diameter (m) 1.25
Speed regulation method Yawning + Electromagnetism braking
Shutting down method Manual + Automatic

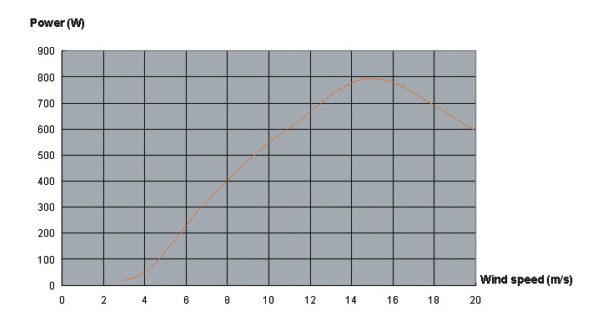

ASWT-600w Curve
