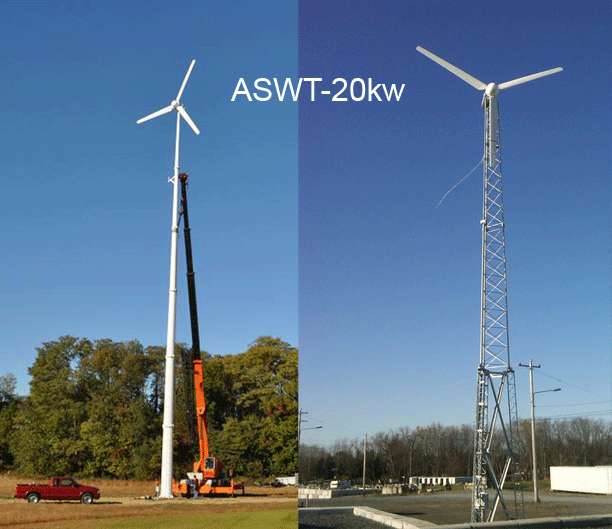

20kW Wind Turbine (ASWT-20kW)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW


Rated Power 20KW
Maximum Output Power (W) 28000
Battery Bank Voltage (Vdc) 240
System output voltage (Vdc) 220/380
Start-up wind speed (m/s) 3
Rated wind speed (m/s) 11.5
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.85
Wind energy utilizing ratio (cp) 0.4
Generator type Permanent Magnet Alternator
Generator weight (kg) 496
Blade material / quality GRP/3
Blade diameter (m) 9.0
Speed regulation method Yawning + Electromagnetism braking (Optional hydraulic braking)
Shutting down method Manual + Automatic

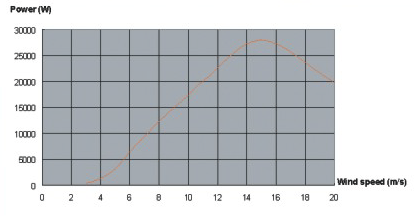

ASWT-20kw Curve
