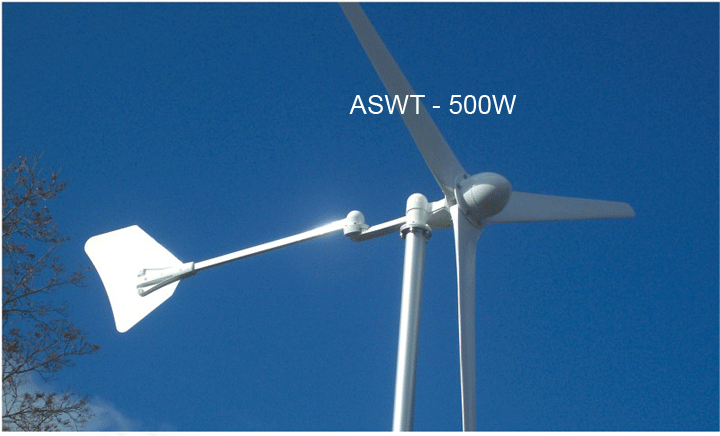

500W Wind Turbine (ASWT-500W)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW


Rated Power 500W
Maximum Output Power (W) 1000
Battery Bank Voltage (Vdc) 24
System output voltage (Vdc) 110/220
Start-up wind speed (m/s) 3
Rated wind speed (m/s) 7
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.78
Wind energy utilizing ratio (cp) 0.48
Generator type Permanent Magnet Alternator
Generator weight (kg) 6.5
Blade material / quality GRP/3
Blade diameter (m) 2.5
Speed regulation method Yawning + Electromagnetism braking
Shutting down method Manual + Automatic

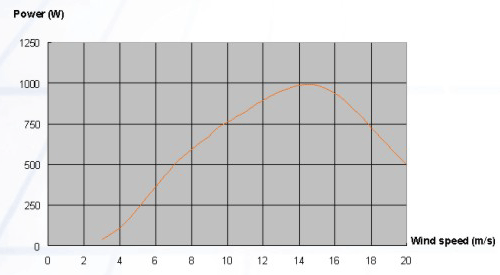

ASWT-500w Curve
