Atlantis Wind Turbines :

"High Quality at Unbeatable Prices and Built to Last"

2kW Wind Turbine (ASWT-2kW)


Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW



Model

ASWT.3.8-2KW
Rated Power 2KW
Maximum Output Power (W) 3200
Battery Bank Voltage (Vdc) 120
System output voltage (Vdc) 110/220
Start-up wind speed (m/s) 3
Rated wind speed (m/s) 9
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.8
Wind energy utilizing ratio (cp) 0.45
Generator type Permanent Magnet Alternator
Generator weight (kg) 25
Blade material / quality GRP/3
Blade diameter (m) 3.8
Speed regulation method Yawning + Electromagnetism braking
Shutting down method Manual + Automatic

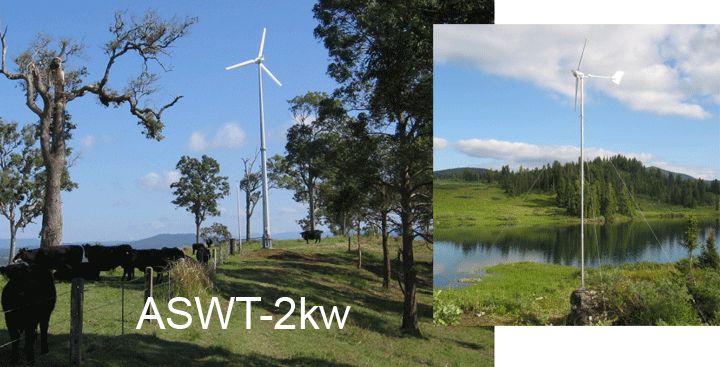

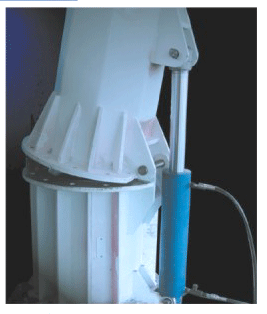

ASWT-2kw Curve Hydraulic Tower
