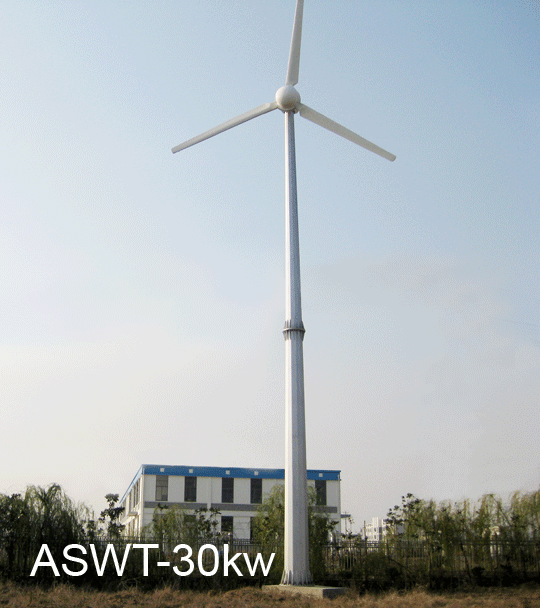

30kW Wind Turbine (ASWT-30kW)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW


Rated Power 30KW
Maximum Output Power (W) 45000
Battery Bank Voltage (Vdc) 360
System output voltage (Vdc) 380
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 11
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.92
Wind energy utilizing ratio (cp) 0.42
Generator type Permanent Magnet Alternator
Generator weight (kg) 680
Blade material / quality GRP/3
Blade diameter (m) 10.0
Speed regulation method Yawning + Electromagnetism braking (Optional hydraulic braking)
Shutting down method Manual + Automatic

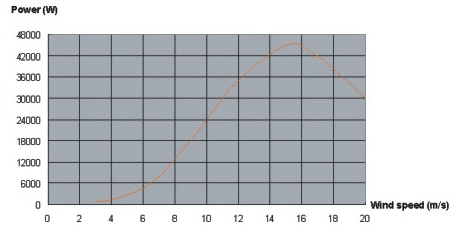

ASWT-30kw Curve
