Atlantis Wind Turbines :
"High Quality at Unbeatable Prices and Built to Last"

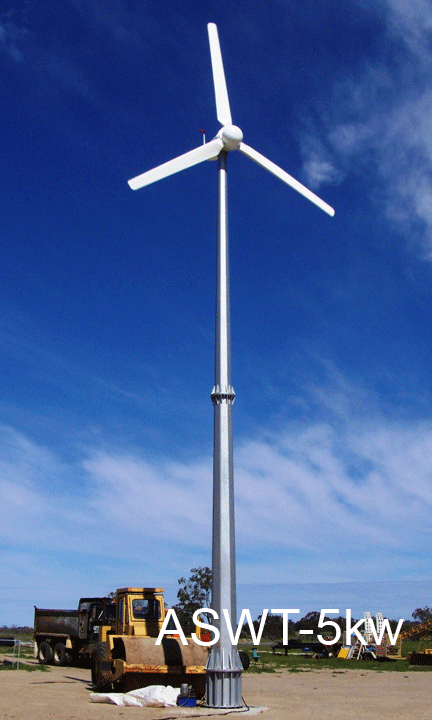

5kW Wind Turbine (ASWT-5kW)

Menu 400W 500W 600W 1KW 2KW 3KW 5KW 10KW 20KW 30KW 50KW


Rated Power 5KW
Maximum Output Power (W) 7500
Battery Bank Voltage (Vdc) 240
System output voltage (Vdc) 110/220/380
Start-up wind speed (m/s) 2.5
Rated wind speed (m/s) 10
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.8
Wind energy utilizing ratio (cp) 0.4
Generator type Permanent Magnet Alternator
Generator weight (kg) 147
Blade material / quality GRP/3
Blade diameter (m) 6.4
Speed regulation method Yawning + Electromagnetism braking (Optional hydraulic braking)
Shutting down method Manual + Automatic

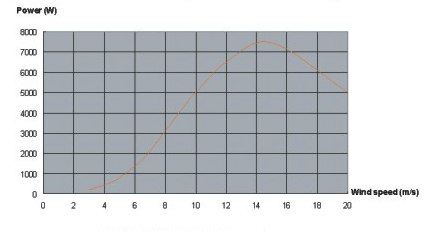

ASWT-5kw Curve Hydraulic Tower
